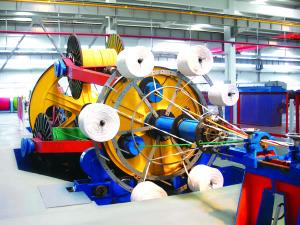

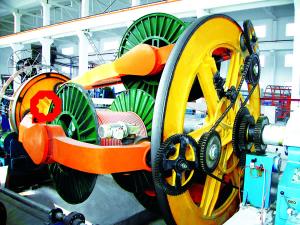

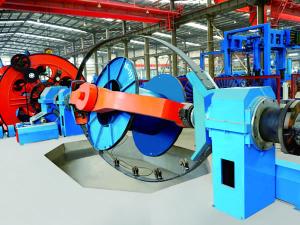

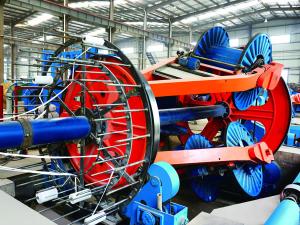

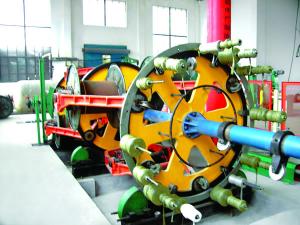

CLY Cradle Type Cabling Machine

Application
The planetary stranding cable making machine is used for making telephone cables, control cables, mining cables, or low and medium low voltage power cables.

Parameters
Bobbin Size (mm) Max. Rotation Speed (rpm) O.D. of Cable Core (mm) Loading Capacity (kg)
6B 12B 18B
Ø400 150 131 115 Ø1.0~Ø2.5 100
Ø500 123 109 96 Ø1.5~Ø6.0 200
Ø630 100 87 77 Ø2.0~Ø10.0 300
Bobbin Size (mm) Max. Rotation Speed (rpm) O.D. of Cable Core (mm) Loading Capacity (kg)
3B 6B (1+3)B (1+1+3)B
Ø1000 40 40 Ø5.0~Ø20.0 2000
Ø1250 32 32 32 32 Ø6.0~Ø25.0 3000
Ø1600 21 21 21 21 Ø10.0~Ø35.0 4000
