CLY High Speed Cable Making Machine

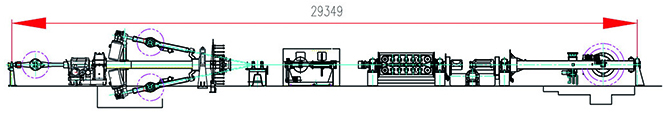

CLY 1250, 1000, or 1600/1+4 Cable Making Machine

Application
CLY cable making machine is used for the production of medium low voltage cables, communication cables, control cables, mining cables and many other cables. It is a perfect alternative to traditional type of 1250/1000/1600/ (1+1+3) cable making machine.

Parameters
Bobbin size (mm) Cable core O.D. (mm) Max. Load capacity (kg) Max. rotation speed(rpm) Max. rotation speed with back-twisting(r/min) Motor power (kw) Back-twisting motor power (kw)
Ø1000 Ø 5.0~20 2000 60 150 44 11
Ø 1250 Ø 6.0~25 3000 50 120 55 15
Ø 1600 Ø 10.0~35 4000 40 100 75 18.5
