Application

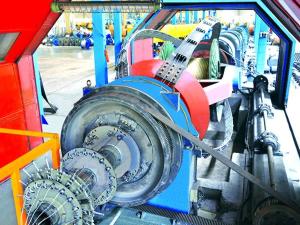

This tubular strander is applied for speedily producing steel strand wire, copper stranded wire, aluminum stranded conductor, and optical fiber composite overhead ground wire (OPGW).
Advantages
1. High Working Speed
Rotation speed of 200/1+6 tubularstrander is 1000rpm, and 800/1+12 type has the rotation speed of 300rpm.
2. Various Sizes
The tubular stranding machine comes with bobbin diameter ranging from 200mm to 800mm. The bobbin amount is from 3 to 36.
3. Multiple Tension Modes
Selectable tension modes include magnetic tension, mechanical tension, mechanical with feedback tension, etc.
Improvement
1. We have developed a special high-speed back-up bearing for the tubular strander.
2. Some models operate much more stably for using the casting bottom plate.
3. A bobbin loader that is pneumatically loosened but automatically clamped is used to this cable manufacturing machinery. It is easier and more convenient to load or unload the bobbin.
4. The optimally designed large bearing lubricating and sealing mechanism helps well control the lubricating oil leakage.
5. The window of loading on the tube is optimized to increase the rotating speed.
Sales Performances
We have sold out 299 sets of tubular stranding equipment.
Iran: 17 sets America: 6 sets India: 4 sets Indonesia: 4 sets South Africa: 3 sets Egypt: 3 sets |
Algeria: 2sets Turkey: 2 sets Russia: 1 set Argentina: 1 set Malaysia: 1 set Mexico: 1 set |
Ukraine: 1 set Uzbekistan: 1 set Singapore: 1 set Vietnam: 1 set Zambia: 1 set |
Bobbin size (mm) | Max. rotation speed (rpm) | Wire dia.(mm) | |||||
6B | 12B | 18B | 24B | Aluminum | Copper | Steel | |
200 | 1000 | 900 | - | - | - | 0.2-1.5 | 0.2-0.8 |
315 | 900 | 800 | - | - | - | 0.5-1.8 | 0.3-1.0 |
400 | 900 | 800 | 550 | 1.0-2.5 | 1.4-4.0 | 0.6-3.0 | |
500 | 800 | 600 | 450 | 350 | 1.3-5.0 | 1.8-5.0 | 1.3-3.5 |
560 | 700 | 500 | 400 | 300 | 1.3-5.0 | 1.8-5.0 | 1.3-3.5 |
630 | 700 | 500 | 330 | 260 | 1.3-5.0 | 2.0-6.0 | 1.3-3.5 |
710 | 400 | 300 | - | - | 1.3-5.0 | 2.0-6.0 | 1.3-3.5 |
760 | 350 | - | - | - | 1.3-5.0 | 2.0-6.0 | 1.3-3.5 |
