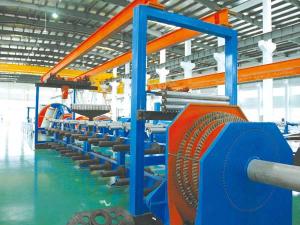

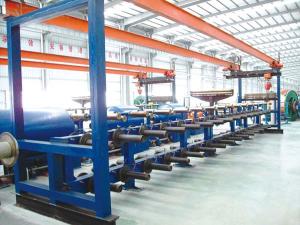

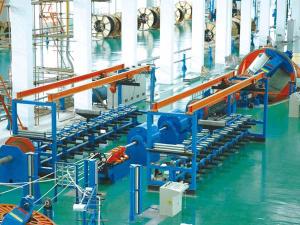

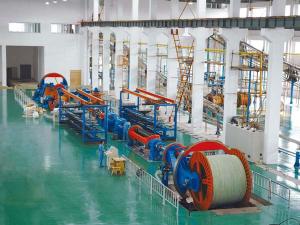

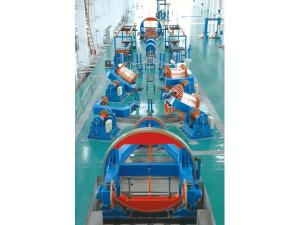

Power Cable Steel Wire Armoring Machine

Features
1. The take-up drum size of the power cable steel wire armoring machine is from 2500mm to 3500mm.
2. Sizes of steel wire bobbin in the armoring machine are 400mm, 500mm, and 630mm. The armoring wires can reach 72, 96, till 120 wires.
3. The steel wire bobbins can be installed on the axial cantilever, and makes the bobbin loading more convenient.
4. Completely wire back-twist winding is applied. This power cable steel wire armoring machine has a straightener to eliminate armoring stress.

Parameters
Take-up Drum Size (mm) Drum O.W. (mm) Loading Capacity (kg) Max. Rotation Speed of Drum Twister Max. Dia. of Steel Wire (mm)
Ø2500 1900 12000 40 4.0
Ø3150 2300 15000 35 5.0
Ø3500 2300 25000 35 5.0
