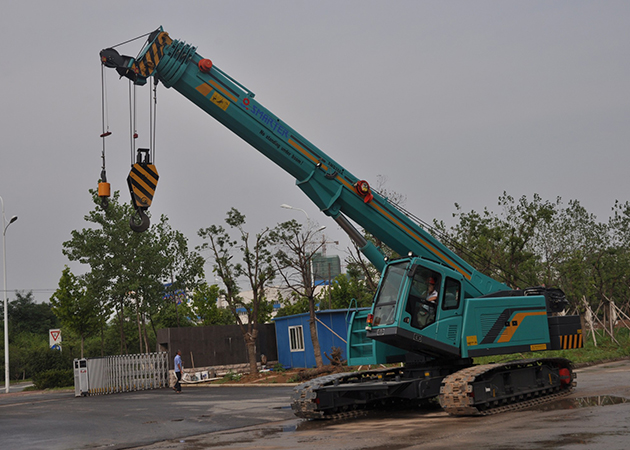

SMQ350A Telescopic Crawler Crane

Parameters
Item Unit Data
Max. Rated Load Weight t 35
Boom Length m 10.5~39.2
Jib Length m 6.5
Max. Length of Boom+Jib m 39.2+6.5
Luffing Angle ° -2~80
Working Speed Steel Rope Speed Hoisting m/min 120
Dropping m/min 120
Slewing Speed r/min 0 ~ 2.0
Travel Speed Km/h 0 ~ 2.8
Hoisting Multiple t 4.37 (single rope)
Grade Ability % 40
Cummins Motor set 1 Type 6BTAA5.9-C205
Motor Output Power/Rev. Kw/rpm 153/2200
Maximum Torque/Rev. N.m / r/min 870/1500
Total Weight t 47.5 (include counterweight)
Counterweight t 13
Overall Size mm 12600 ×4500 ×3000
Unit Pressure of Ground Kg/cm2 0.8
